Chat Completions

Chat completions are the core of conversational AI in the GenAI for Unreal plugin. This page covers how to send text-based and multimodal chat requests to AI models, including best practices for structuring messages and handling responses.

1. Basic Text Chat

The simplest way to interact with AI models is through text-only chat completions. This involves sending a series of messages (system prompt, user input, assistant responses) and receiving a generated response.

In Blueprints

Use the “Request [Provider] Chat Completion” node, such as Request OpenAI Chat Completion. You’ll need to provide:

  • Settings: A struct containing model selection, temperature, max tokens, etc.
  • Messages: An array of message structs (role: system/user/assistant, content: text)
  • Callback: An event to handle the response
Basic Chat Blueprint Node
Example of a basic chat completion request in Blueprints.

In C++

Use the static function from the provider’s chat class:

UGenOAIChat::SendChatRequest(Settings, Messages, FOnChatCompletionResponse::CreateLambda([](/* response params */) {
    // Handle response
}));

2. Multimodal Chat (Vision)

Many modern AI models support multimodal inputs, allowing you to include images alongside text in your chat messages. This enables powerful use cases like analyzing in-game screenshots, describing scenes, or generating responses based on visual context.

Supported Providers

  • OpenAI
  • Google
  • Anthropic
  • XAI

Setting up image Content

To include images in your chat messages, You can either import texture as a file or as a raw buffer or even as a Unreal Texture (Uncompressed only)

Important: Texture Format Support

⚠️ Texture Compression Warning

Plugin Version 1.6.0 and Below: The FromTexture2D and Make Image Content from Texture nodes only support uncompressed textures (UserInterface2D/RGBA format). Compressed textures (DXT1/DXT5) will either fail to convert or in rare cases crash the editor!

Plugin Version 1.7.0+: FromTexture2D now supports ALL texture formats including compressed ones in EDITOR, and only uncompressed one's in Game Builds. So, we recommend using UserInterface2D (RGBA) compression on textures you plan to send to AI models.

Compressed textures in packaged builds will return an error - use RGBA format for production.

Blueprint Node for getting all models

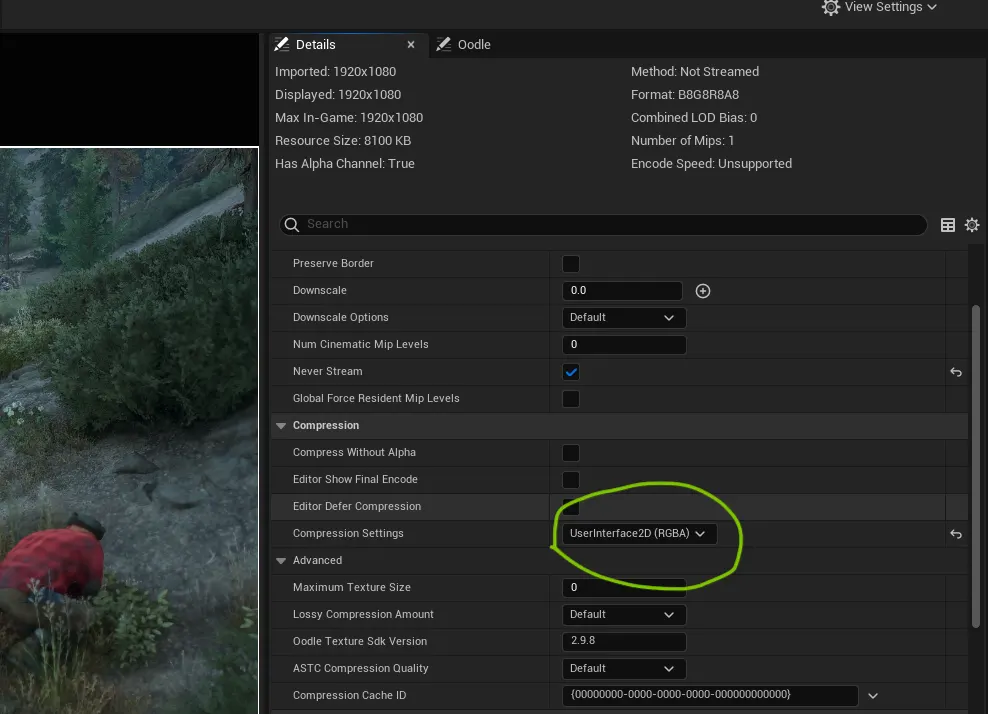

Use Uncompressed textures
Blueprint Nodes

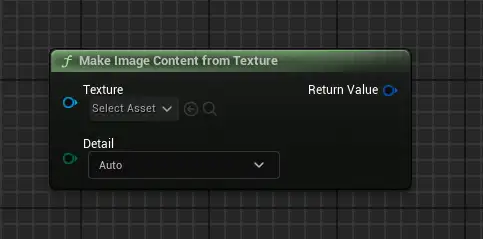

  • Make Image Content from Texture: Converts a UTexture2D to image content for chat messages
  • From Texture 2D: Alternative node for texture conversion

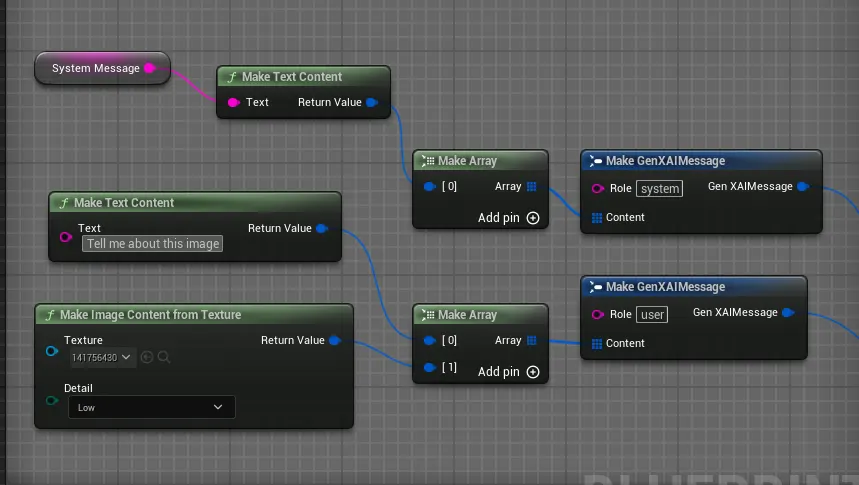

Multimodal Chat Setup
Setting up a multimodal chat message with text and image content.
Blueprint Node for getting all models
Blueprint node to get all models example

Message Structure

When creating multimodal messages, use the “Make [Provider] Message” node with content that includes both text and image parts:

// Pseudo-code
Make OpenAI Message:
    Role: User
    Content: Array of content parts
        - Text: "What's in this image?"
        - Image: (from Make Image Content from Texture)

3. OpenAI Responses API (Beta)

The OpenAI Responses API is a newer API designed for models that are Responses API-only, such as gpt-5.4, gpt-5.4-pro, gpt-5.2-pro, gpt-5.3-codex, and other Codex models. These models do not support the standard Chat Completions endpoint and must use the Responses API instead.

The plugin provides a dedicated class, UGenOAIResponses, that handles the Responses API with the same familiar async pattern.

When to Use

  • Use UGenOAIChat (Chat Completions) for standard models like gpt-5-mini, gpt-5.1, gpt-4o, etc.
  • Use UGenOAIResponses (Responses API) for Pro and Codex models like gpt-5.4-pro, gpt-5.3-codex, gpt-5.2-pro, etc or for advanced features like web search or inchat image generation etc.
Multimodal Chat Setup
Sending a responses API request.
Multimodal Chat Setup
Processing a responses API response.

Key Settings (FGenOpenAIResponsesSettings)

Property Type Description
Model FString The model to use (defaults to gpt-5.4-pro).
Messages TArray<FGenChatMessage> Conversation history, same format as Chat Completions.
Instructions FString System-level instructions (equivalent to a system message).
Temperature float Controls randomness (0.0 to 2.0).
MaxOutputTokens int32 Maximum tokens to generate (default: 4096).
ReasoningEffort EGenAIResponsesReasoningEffort Controls reasoning depth: Low, Medium, High, or Default.
Tools TArray<FGenAIToolDefinition> Optional function/tool definitions the model can call.
AdditionalToolsJson FString Raw JSON for built-in tools like web_search or image_generation.

Built-in Tools (AdditionalToolsJson)

The Responses API supports OpenAI’s built-in tools alongside custom function tools. To enable them, pass a JSON array string to the AdditionalToolsJson field. These are appended to any function tools you define in the Tools array.

In Blueprints, the Additional Tools Json field on the Make Gen OpenAI Responses Settings node accepts the same JSON strings shown below.

Image Generation Tool

Allows the model to generate images inline during a conversation. See the Image Generation page for full details and C++ examples.

Parameter Values Default
quality low, medium, high, auto auto
size 1024x1024, 1024x1536, 1536x1024, auto auto
output_format png, webp, jpeg png
output_compression 0 - 100 (lower = smaller file) 100
background transparent, opaque, auto auto
partial_images 0 - 3 (progressive previews) 0

Examples:

// Quick draft — low quality, small size, JPEG for speed
Settings.AdditionalToolsJson = TEXT(R"([{"type": "image_generation", "quality": "low", "size": "1024x1024", "output_format": "jpeg", "output_compression": 60}])");

// High-res portrait (e.g., character art, vertical posters)
Settings.AdditionalToolsJson = TEXT(R"([{"type": "image_generation", "quality": "high", "size": "1024x1536", "output_format": "png"}])");

// Wide landscape (e.g., environment concept art, loading screens)
Settings.AdditionalToolsJson = TEXT(R"([{"type": "image_generation", "quality": "high", "size": "1536x1024"}])");

// Transparent background (e.g., UI icons, item sprites)
Settings.AdditionalToolsJson = TEXT(R"([{"type": "image_generation", "quality": "medium", "size": "1024x1024", "background": "transparent", "output_format": "png"}])");
Multimodal Chat Setup
AdditionalToolsJson Blueprint examples
Web Search Tool

Allows the model to search the web for up-to-date information. Useful for grounding responses in real-world data.

Parameter Values Default
search_context_size low, medium, high medium
user_location Object with type, city, country, region, timezone none

search_context_size controls how much search result content is fed to the model — low is cheaper/faster, high gives the model more context to work with.

Examples:

// Basic web search — default settings
Settings.AdditionalToolsJson = TEXT(R"([{"type": "web_search"}])");

// Thorough search — more context for complex research questions
Settings.AdditionalToolsJson = TEXT(R"([{"type": "web_search", "search_context_size": "high"}])");

// Lightweight search — cheaper, faster, for simple fact lookups
Settings.AdditionalToolsJson = TEXT(R"([{"type": "web_search", "search_context_size": "low"}])");

// Location-aware search — results biased toward a specific region
Settings.AdditionalToolsJson = TEXT(R"([{"type": "web_search", "search_context_size": "medium", "user_location": {"type": "approximate", "country": "JP", "city": "Tokyo"}}])");
Code Interpreter Tool (Experimental)

Allows the model to write and execute Python code in a sandboxed environment. Requires a container configuration.

// Auto-create a container (simplest setup)
Settings.AdditionalToolsJson = TEXT(R"([{"type": "code_interpreter", "container": {"type": "auto"}}])");
File Search Tool

Allows the model to search through files you’ve uploaded to an OpenAI vector store. Requires a vector store ID.

// Search a specific vector store
Settings.AdditionalToolsJson = TEXT(R"([{"type": "file_search", "vector_store_ids": ["vs_abc123"]}])");
Combining Multiple Tools

You can enable any combination of tools in a single request:

// Web search + high-quality image generation
Settings.AdditionalToolsJson = TEXT(R"([{"type": "web_search", "search_context_size": "high"}, {"type": "image_generation", "quality": "high", "size": "1536x1024"}])");

C++ Example

#include "Models/OpenAI/GenOAIResponses.h"
#include "Data/OpenAI/GenOAIResponsesStructs.h"

void AMyActor::RequestFromResponsesAPI()
{
    FGenOpenAIResponsesSettings Settings;
    Settings.Model = TEXT("gpt-5.4-pro");
    Settings.Instructions = TEXT("You are a helpful game design assistant.");
    Settings.Temperature = 0.7f;
    Settings.ReasoningEffort = EGenAIResponsesReasoningEffort::High;

    // Optional: Enable built-in tools (web search, image generation, etc.)
    Settings.AdditionalToolsJson = TEXT("[{\"type\": \"web_search\"}]");

    FGenChatMessage UserMsg;
    UserMsg.Role = TEXT("user");
    UserMsg.TextContent = TEXT("Design a boss encounter for a dark fantasy RPG.");
    Settings.Messages.Add(UserMsg);

    UGenOAIResponses::SendResponsesRequest(Settings,
        FOnResponsesCompletionResponse::CreateLambda([](const FGenOAIResponsesResult& Result, const FString& Error, bool bSuccess)
        {
            if (bSuccess)
            {
                UE_LOG(LogTemp, Log, TEXT("Responses API result: %s"), *Result.ResponseText);
            }
            else
            {
                UE_LOG(LogTemp, Error, TEXT("Error: %s"), *Error);
            }
        })
    );
}

Blueprint Implementation

Use the “Request OpenAI Response (Pro/Codex)” node. Configure it with the Make Gen OpenAI Responses Settings node, which provides the same familiar fields (model, messages, temperature) plus Responses API-specific options like Instructions and Reasoning Effort.

4. Streaming Chat Responses

For real-time chat experiences, use the streaming versions of chat nodes. These provide incremental responses as they’re generated, allowing for typewriter effects and interruptible conversations.

See the Streaming page for detailed information on implementing streaming chat.

5. Best Practices

  • Message History: Maintain conversation context by including previous messages in the array
  • System Prompts: Use system messages to set the AI’s behavior and role
  • Token Limits: Monitor token usage to avoid hitting API limits
  • Error Handling: Always implement proper error handling for failed requests
  • Texture Optimization: Use RGBA textures for multimodal chat to ensure compatibility across all build types

6. Example Use Cases

  • NPC Dialogue: Generate dynamic responses based on player input
  • Scene Analysis: Describe or analyze in-game screenshots
  • Procedural Content: Generate descriptions for dynamically created assets
  • Interactive Storytelling: Build branching narratives with AI assistance
